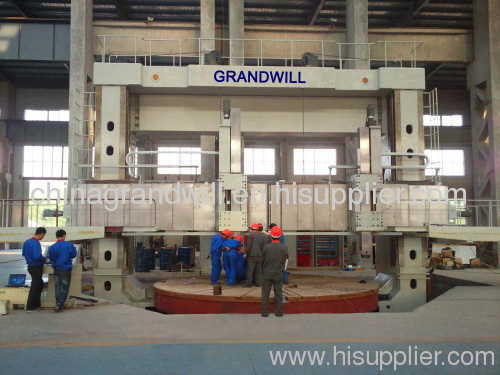

CKXD52165 CNC Double Column Vertical Turning and Milling Com

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CKXD52165

Production Capacity: 10PCS/YEAR

Delivery Date: a month

Raw Material: Steel Bar

Certification: CE

Brand Name: GRANDWILL

Means of Transport: Ocean,Land

Packing: as per buyer's requirement

Power: Cnc

Automation: Automatic

Material / Metal Processed: Stainless Steel

CKXD52165 CNC Double Column Vertical Turning and Milling Complex Lathe can machine all kinds of workpieces made of ferrous metal, non ferrous metal, a

CKXD52165 CNC Double Column Vertical Turning and Milling Complex Lathe can machine all kinds of workpieces made of ferrous metal, non ferrous metal, alloy and non-metal materials efficiently and automatically.

Features

1. Capable of turning and milling spherical surface, cylindrical surface, conical surface, screw thread, end surface, inner and outer ring slot;

2. Capable of cutting at a constant speed;

3. Capable of drilling, boring, counter boring and tapping after equipped with functional parts;

4. Worktable is designed with automatic indexing and clamping functions;

5. Synchronous movement of X axis, Z axis and C axis;

6. Milling spindle inside toolpost square ram.

Specifications

Worktable Diameter	Φ8000-12000 mm
Max. Turning Diameter	Φ16500 mm
Max. Turning Height	5000-7000 mm
Max. Weight of Workpiece	400,000 kg (worktable speed <5 rpm)
Max. Weight of Workpiece	80,000 kg (random worktable speed)
Worktable Speed	0.155~6.5 rpm (turning)
Worktable Speed	0.0002~0.2 rpm (milling)
Max. Torque of Worktable	650 knm
Total Power	420 kw
Approximate Weight	600,000 kg
